In the room tools, there are a variety of doors & windows styles to choose from, which supports the adjustment of the size and position of doors & windows, and replace the doors & windows styles with one click to meet the needs of different doors & windows types in the floor plan.
For Users
All users. If some enterprise accounts do not have the kitchen & closet design entrance, please contact the CSC to apply.
Entrance
1. Enter the kitchen & closet design and choose the room.
2. Select a door/window, there are three types of doors: single door, double door, sliding door, as well as three types of windows: linear window, linear bay window, french window.
Add Doors & Windows

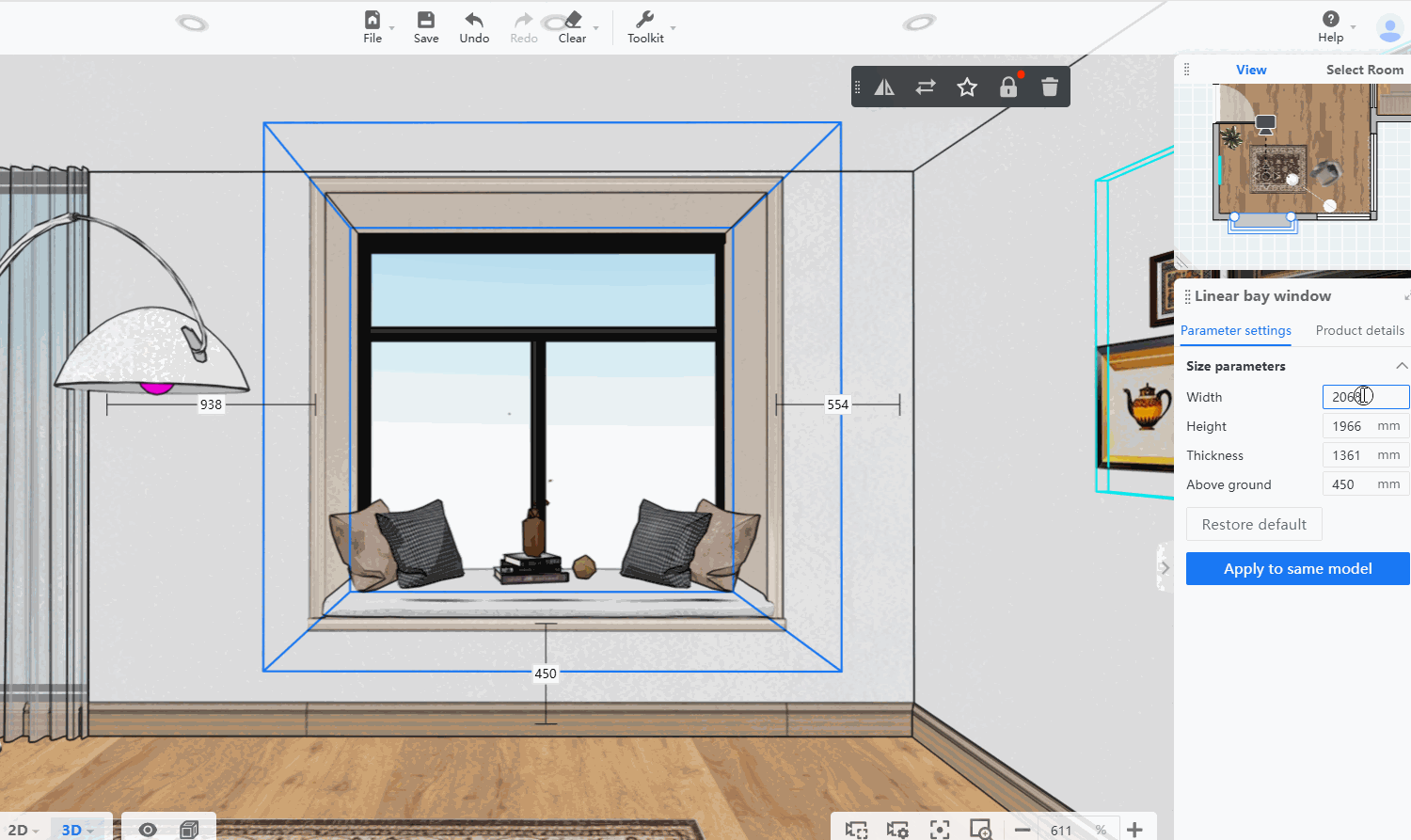

Select the door/window and drag it on the wall. The tutorial demonstration takes the window as an example:
Adjust the Doors & Windows Size
1. You can modify the width, height, thickness and distance above the ground in the size parameters in the right panel.
2. Click to restore default to restore the size before the modification.
Replace the Doors & Windows Styles
Method One
In 2D mode, switch different door/window styles in the right panel.
Method Two
1. Select the model and select Replace in the floating toolbar.
2. Select the door/window style in the left panel to replace.
Flip the Doors & Windows Position
1. Select the model and select Flip in the floating toolbar.
2. The flip function supports left/right flip and front/back flip.
